Products

The core business of Kwant Controls is the design and manufacturing of various types of control units for the electrical remote control of practically all kinds of propulsion and steering devices, such as: traditional main engine/clutch/CPP-FPP shaft lines, tunnel thrusters, azimuthal thrusters, rudders and water jets.

  • Most units can be equipped with drive motors for automatic lever synchronization in a multi-station electric shaft/telegraph system.
  • Various machinery interfaces can be selected from e.g. potentiometer, 4-20mA, micro-switch contacts or even integrated CAN.
  • In case of remote control failure, one can rely on our traditional lamp type Engine Order Telegraphs, for signalling between Bridge, Control- and Engine Room.
  • Feedback from the vessel’s actuators can be displayed using our panel- or ceiling mounted range of indicators.

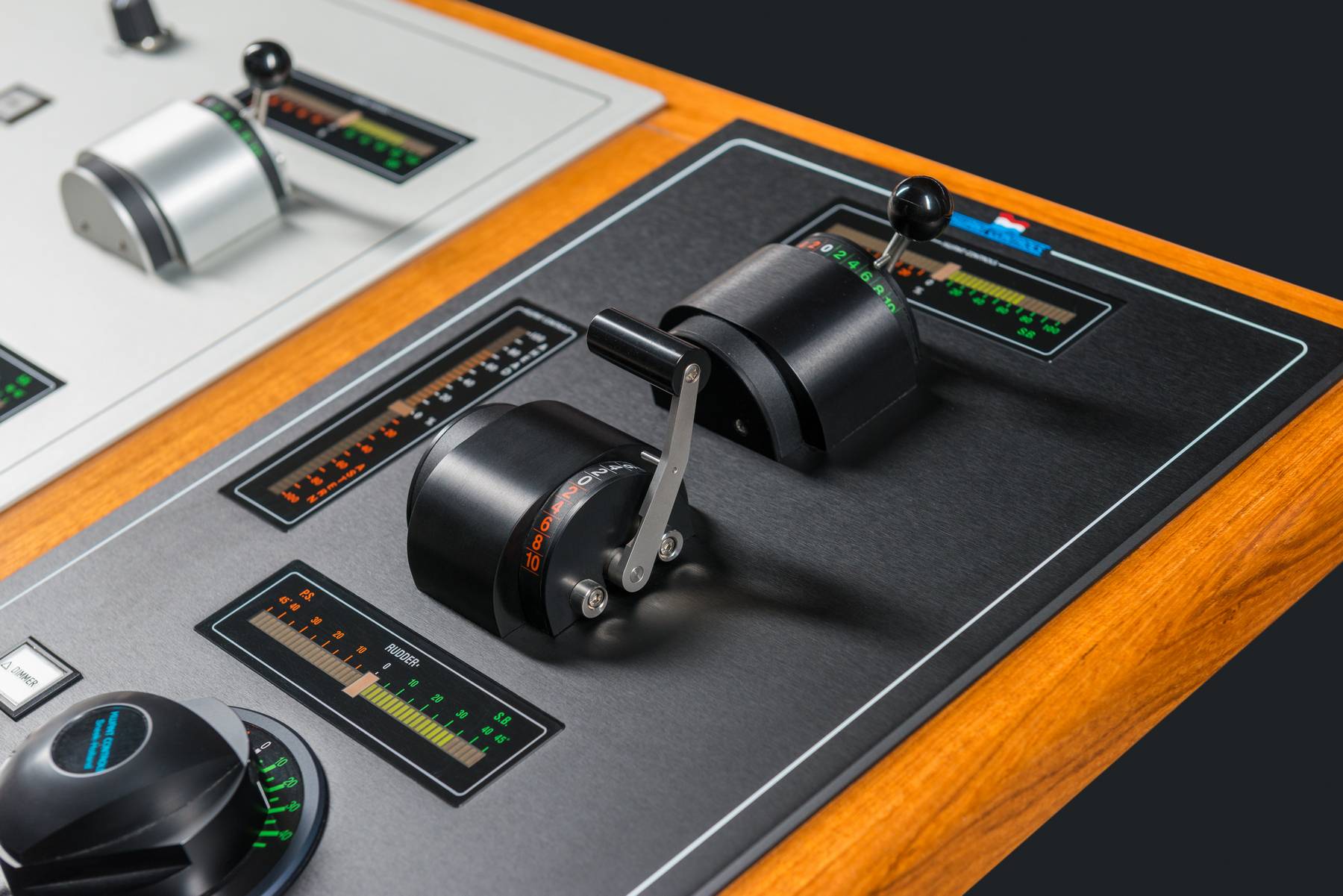

  • Customer specific control panels, with built-in lever units, signal lamps, pushbuttons, indicators, buzzers, electronic dimmers et cetera can be supplied. These panels are available with interface modules and PLC’s, together forming a Propulsion Remote Control system tailored to customer requirements, completely functional Factory tested (with or without class and/or customer in attendance).
  • For maximum flexibility of control on board, and eliminating the need for having fixed control positions, class approved portable wireless control systems can be supplied with all control devices integrated.

Specs

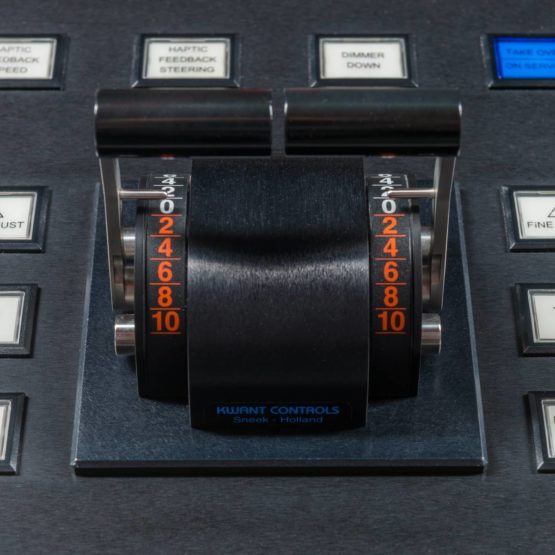

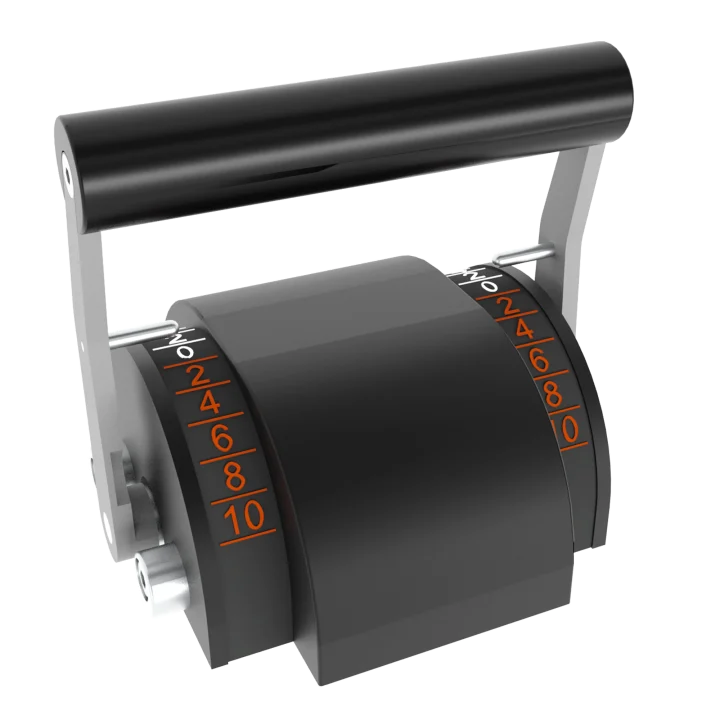

The unit is made of a seawater proof aluminium alloy and executed with one or two peripheral dials. All decorative parts are black or blank anodized. The lever unit can be equipped with single or twin levers, straight or tilted, and with spherical knobs or cross bars.

Type-approved by ABS, BV, CCS, DNV-GL, LRS, NKK , RINA and RMRS

Options

  • Integrated signal transmitter 4-20mA (single lever only)
  • Micro switch contacts for e.g. clutch control
  • Mechanically lockable cross-levers
  • Stepper motors for:
    • Automatic line-up (Electric Shaft);
    • Electrical fine adjustment;
    • Haptic feedback;
    • Programmable detents (palpable stops);
  • Other options on request



For all inquiries about this product, please fill out the form below. Our control units are available as part of a remote control systems with an integrated telegraph and/or electric shaft system. After submitting the form, a sales representative will contact you shortly.
E.g. Picture of part that needs replacing.
