The core business of Kwant Controls is the design and manufacturing of various types of control units for the electrical remote control of practically all kinds of propulsion and steering devices, such as: traditional main engine/clutch/CPP-FPP shaft lines, tunnel thrusters, azimuthal thrusters, rudders and water jets.

Specs

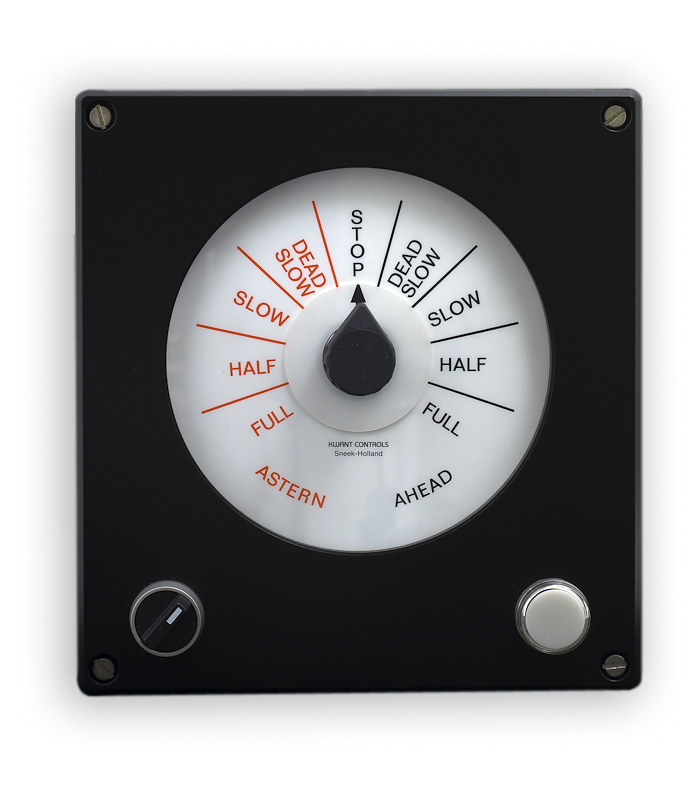

IP level Pointer WD: IP56

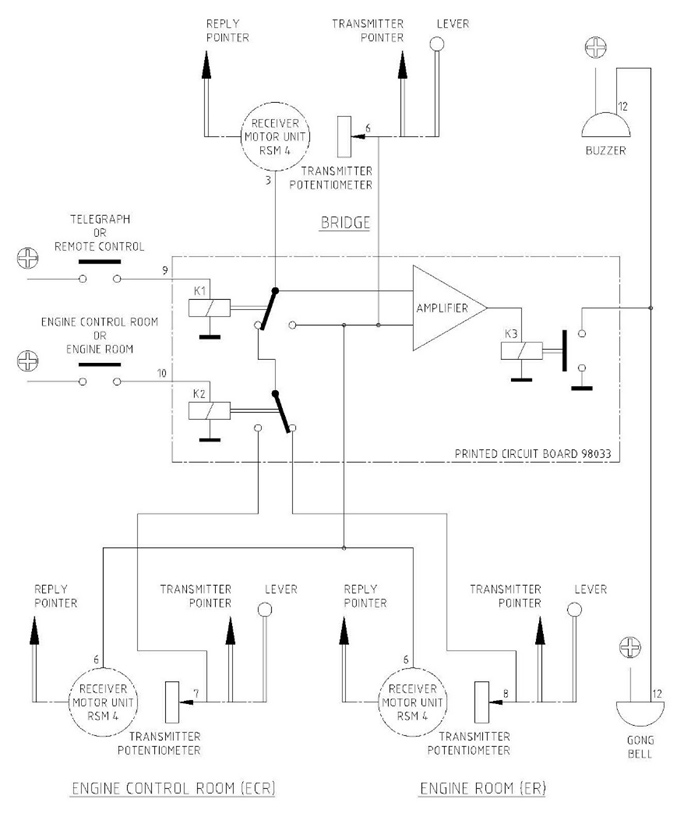

The bridge- and ECR or ER transmitter potentiometers are connected to the amplifier inputs, and to the receiver motor units of the other position. With both command levers in the same position, there will be no voltage at the amplifier output and the alarm will be off.

When either command lever is moved, the output will be driven high and the alarm will sound. Relay K2 selects which position is on service, relay K1 selects either R.C. or telegraph  mode.

For all inquiries about this product, please fill out the form below. Our control units are available as part of a remote control systems with an integrated telegraph and/or electric shaft system. After submitting the form, a sales representative will contact you shortly.
