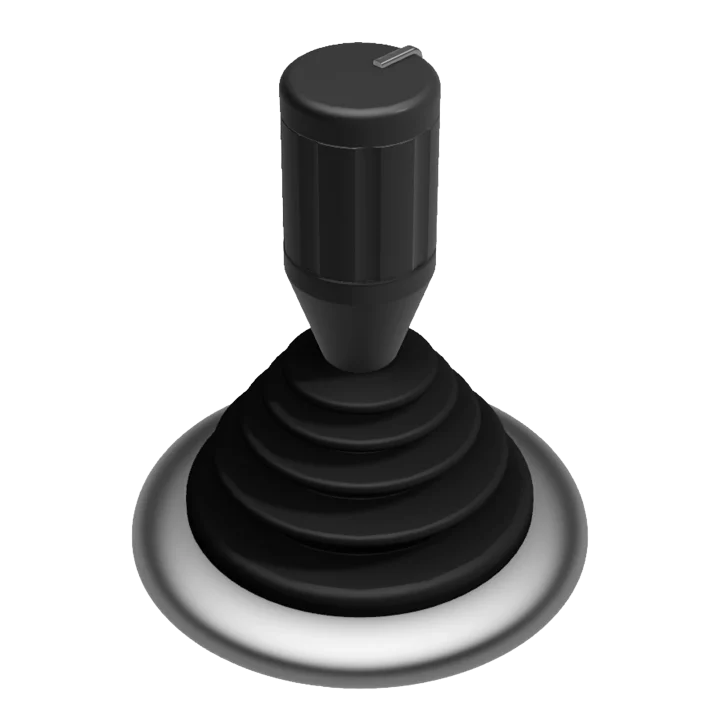

KC06 – sleeve

Robust yet amazing feeling.

Description

Specs

KC-06 joysticks come as X, XY, or XYZ types, all available with an IP22 or IP56 rating, the latter having a protective harmonica type of sleeve. Standard signal transmitter for each direction is a single 5KOhm conductive plastic potentiometer.

IP level: IP22 / IP56 / IP67

The KC-06 joysticks are type-approved by ABS, BV, CCS, DNV, LRS, NKK , RINA and RMRS

Available output signals

  • 2KOhm;
  • 5KOhm;
  • 4-20mA;
  • Integrated CAN;

Options

  • Multi-ganged potentiometers for X and Y, twin gang for Z direction;
  • Spring return feature available in all three directions;
  • Micro switches in X and/or Y direction;
  • Stepper motors in X and/or Y direction for:
    • Automatic line-up (Electric Shaft);
    • Haptic feedback (e.g. programmable detents, safe operating areas and vibration intensity);
