Products

The core business of Kwant Controls is the design and manufacturing of various types of control units for the electrical remote control of practically all kinds of propulsion and steering devices, such as: traditional main engine/clutch/CPP-FPP shaft lines, tunnel thrusters, azimuthal thrusters, rudders and water jets.

  • Most units can be equipped with drive motors for automatic lever synchronization in a multi-station electric shaft/telegraph system.
  • Various machinery interfaces can be selected from e.g. potentiometer, 4-20mA, micro-switch contacts or even integrated CAN.
  • In case of remote control failure, one can rely on our traditional lamp type Engine Order Telegraphs, for signalling between Bridge, Control- and Engine Room.
  • Feedback from the vessel’s actuators can be displayed using our panel- or ceiling mounted range of indicators.
  • Customer specific control panels, with built-in lever units, signal lamps, pushbuttons, indicators, buzzers, electronic dimmers et cetera can be supplied. These panels are available with interface modules and PLC’s, together forming a Propulsion Remote Control system tailored to customer requirements, completely functional Factory tested (with or without class and/or customer in attendance).
  • For maximum flexibility of control on board, and eliminating the need for having fixed control positions, class approved portable wireless control systems can be supplied with all control devices integrated.

Specs

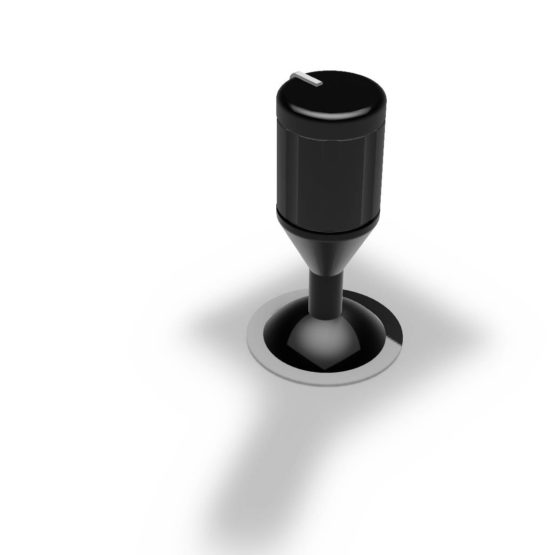

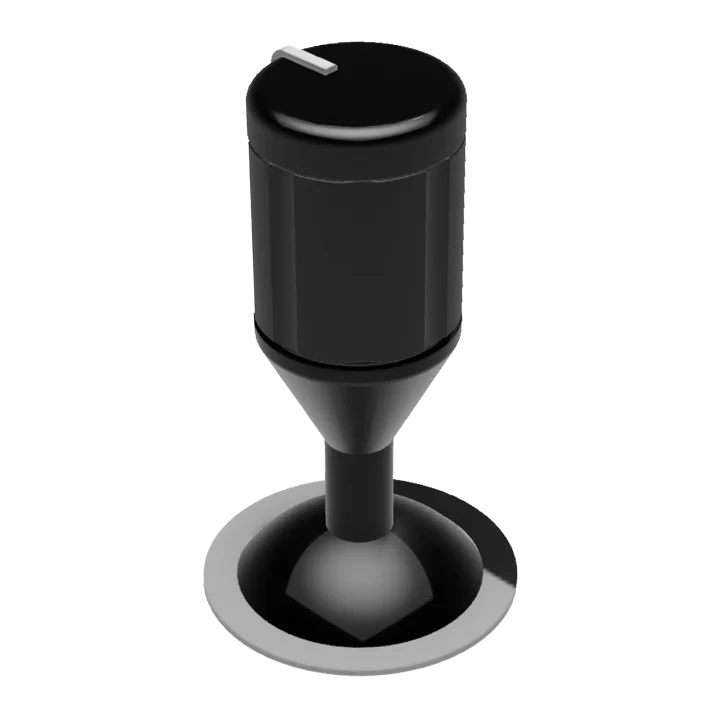

KC-06 joysticks come as X, XY, or XYZ types, all available with a IP22 or IP56, the latter having a protective harmonica type of sleeve. Standard signal transmitter for each direction is a single 5KOhm potentiometer.

The KC-06 joysticks are type-approved by ABS, BV, CCS, DNV, GL, LRS, NKK , RINA and RMRS

Options

  • Multi-ganged potentiometers for X and Y, twin gang for Z direction;
  • Spring return feature available in all three directions;
  • Micro switches in X and/or Y direction;
  • Stepper motors in X and/or Y direction for:
    • Automatic line-up (Electric Shaft);
    • Haptic feedback (for instance programmable vibration intensity);
    • Programmable detents (palpable stops).
